NETELLIGENT 16/4 TR PCI UTP/STP CONTROLLER Network Card Settings and Configuration







COMPAQ COMPUTER CORPORATION

NETELLIGENT 16/4 TR PCI UTP/STP CONTROLLER

Card Type

Network Interface Card

NIC Type

Token Ring

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

4Mbps, 16Mbps

Topology

Ring

Wiring Type

Shielded twisted pair (DB-9), Unshielded twisted pair (RJ-45)

Data Bus

32-bit PCI

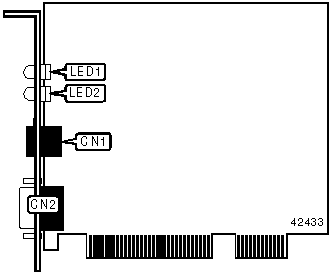

CONNECTIONS

Function

Label

Function

Label

UTP connector (RJ-45)

CN1

STP connector (DB-9)

CN2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Network connection is good

LED1

Unidentified

Off

Network connection is broken

LED2

Unidentified

On

Data is being transmitted

LED2

Unidentified

Off

Data is not being transmitted
