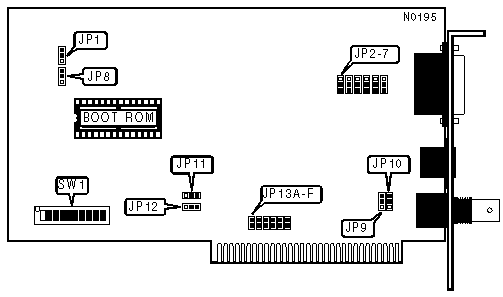

ETHERFLEX PLUS 8B, PCN014 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Star Linear Bus
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4
	200h	On	On	On	On
	220h	Off	On	On	On
	240h	On	Off	On	On
	260h	Off	Off	On	On
»	280h	On	On	Off	On
	2A0h	Off	On	Off	On
	2C0h	On	Off	Off	On
	2E0h	Off	Off	Off	On
	300h	On	On	On	Off
	320h	Off	On	On	Off
	340h	On	Off	On	Off
	360h	Off	Off	On	Off
	380h	On	On	Off	Off
	3A0h	Off	On	Off	Off
	3C0h	On	Off	Off	Off
	3E0h	Off	Off	Off	Off

BOOT ROM
Setting		SW1/5
»	Disabled	Off
	Enabled	On

BOOT ROM ADDRESS
Address		SW1/6	SW1/7	SW1/8	SW1/9
	C0000h	On	On	On	On
	C4000h	On	On	On	Off
	C8000h	On	On	Off	On
	CC000h	On	On	Off	Off
	D0000h	On	Off	On	On
	D4000h	On	Off	On	Off
	D8000h	On	Off	Off	On
»	DC000h	On	Off	Off	Off
	E0000h	Off	On	On	On
	E4000h	Off	On	On	Off
	E8000h	Off	On	Off	On
	EC000h	Off	On	Off	Off
	F0000h	Off	Off	On	On
	F4000h	Off	Off	On	Off
	F8000h	Off	Off	Off	On
	FC000h	Off	Off	Off	Off

RAM BUFFER SIZE
Size		JP1	JP8	JP11	JP12
»	8KB	Pins 1 & 2 Closed	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed
	32KB	Pins 2 & 3 Closed	Pins 2 & 3 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed

CABLE TYPE
Type	JP2 - JP7	JP9	JP10
Unshielded twisted pair	Pins 2 & 3 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed
AUI transceiver via DB-15 port	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed
RG-58A/U 50ohm coaxial	Pins 1 & 2 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed

INTERRUPT REQUEST
IRQ		JP13A	JP13B	JP13C	JP13D	JP13E	JP13F
	2	Closed	Open	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open
	6	Open	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Open	Closed

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/10	Open
