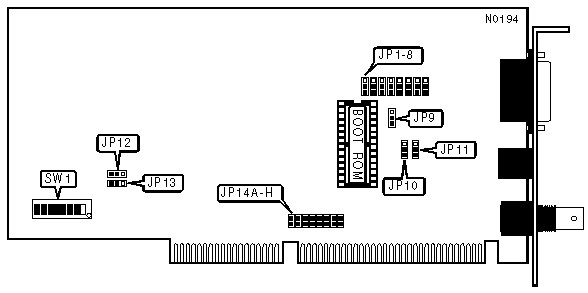

ETHERFLEX PLUS/16B, PCN015 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star Linear Bus
Wiring Type	Unshielded twisted pair RG58A/U 50ohm coaxial DIX transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4
	200h	On	On	On	On
	220h	On	On	On	Off
	240h	On	On	Off	On
	260h	On	On	Off	Off
»	280h	On	Off	On	On
	2A0h	On	Off	On	Off
	2C0h	On	Off	Off	On
	2E0h	On	Off	Off	Off
	300h	Off	On	On	On
	320h	Off	On	On	Off
	340h	Off	On	Off	On
	360h	Off	On	Off	Off
	380h	Off	Off	On	On
	3A0h	Off	Off	On	Off
	3C0h	Off	Off	Off	On
	3E0h	Off	Off	Off	Off

BOOT ROM ADDRESS
Address		SW1/5	SW1/6	SW1/7
	C0000h	On	On	On
	C4000h	On	On	Off
	C8000h	On	Off	On
	CC000h	On	Off	Off
	D0000h	Off	On	On
	D4000h	Off	On	Off
	D8000h	Off	Off	On
»	DC000h	Off	Off	Off

BOOT ROM
Setting		SW1/8
»	Disabled	Off
	Enabled	On

BOOT ROM SIZE
Size		JP1	JP12
»	16KB	Pins 1 & 2 Closed	Pins 1 & 2 Closed
	32KB	Pins 2 & 3 Closed	Pins 2 & 3 Closed

CABLE TYPE
Type	JP3 - JP8	JP10	JP11
Unshielded twisted pair	Pins 2 & 3 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed
DIX transceiver via DB-15 port	Pins 1 & 2 Closed	Pins 2 & 3 Closed	Pins 2 & 3 Closed
RG-58A/U 50ohm coaxial	Pins 1 & 2 Closed	Pins 1 & 2 Closed	Pins 1 & 2 Closed

INTERRUPT REQUEST
IRQ		JP14A	JP14B	JP14C	JP14D	JP14E	JP14F	JP14G	JP14H
	2/9	Open	Open	Open	Closed	Open	Open	Open	Open
»	3	Open	Open	Open	Open	Open	Open	Open	Closed
	4	Open	Open	Open	Open	Open	Open	Closed	Open
	5	Open	Open	Open	Open	Open	Closed	Open	Open
	7	Open	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Closed	Open	Open	Open	Open	Open
	11	Open	Closed	Open	Open	Open	Open	Open	Open
	15	Closed	Open	Open	Open	Open	Open	Open	Open

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP2	Pins 2 & 3 Closed
JP9	Open
JP13	Pins 1 & 2 Closed
