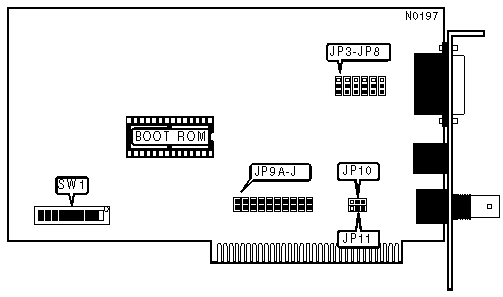

ETHERFLEX 8B, PCN012 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Star Linear Bus
Wiring Type	Unshielded twisted pair RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5
	200h	Off	On	On	On	On
	220h	Off	On	On	On	Off
	240h	Off	On	On	Off	On
	260h	Off	On	On	Off	Off
	280h	Off	On	Off	On	On
	2A0h	Off	On	Off	On	Off
	2C0h	Off	On	Off	Off	On
	2E0h	Off	On	Off	Off	Off
»	300h	Off	Off	On	On	On
	320h	Off	Off	On	On	Off
	340h	Off	Off	On	Off	On
	360h	Off	Off	On	Off	Off
	380h	Off	Off	Off	On	On
	3A0h	Off	Off	Off	On	Off
	3C0h	Off	Off	Off	Off	On
	3E0h	Off	Off	Off	Off	Off

BOOT ROM
Setting		SW1/6
»	Disabled	Off
	Enabled	On

BOOT ROM ADDRESS
Address		SW1/7	SW1/8	SW1/9	SW1/10
	C0000h	On	On	On	On
	C4000h	On	On	On	Off
	C8000h	On	On	Off	On
	CC000h	On	On	Off	Off
	D0000h	On	Off	On	On
	D4000h	On	Off	On	Off
	D8000h	On	Off	Off	On
»	DC000h	On	Off	Off	Off
	E0000h	Off	On	On	On
	E4000h	Off	On	On	Off
	E8000h	Off	On	Off	On
	EC000h	Off	On	Off	Off
	F0000h	Off	Off	On	On
	F4000h	Off	Off	On	Off
	F8000h	Off	Off	Off	On
	FC000h	Off	Off	Off	Off

CABLE TYPE
Type		JP3 - JP8	JP10 & JP11
»	Unshielded twisted pair	Pins 1 & 2 Closed	Pins 2 & 3 Closed
	RG-58A/U 50ohm	Pins 2 & 3 Closed	Pins 1 & 2 Closed
	DIX transceiver via DB-15	Pins 2 & 3 Closed	Pins 2 & 3 Closed

DMA CHANNEL
Channel		JP9A	JP9B	JP9C	JP9D
»	DMA1	Open	Closed	Open	Closed
	DMA3	Closed	Open	Closed	Open

INTERRUPT REQUEST
IRQ		JP9G	JP9H	JP9I	JP9J
»	2	Open	Open	Open	Closed
	3	Open	Open	Closed	Open
	4	Open	Closed	Open	Open
	5	Closed	Open	Open	Open

FACTORY CONFIGURED SETTING
Mode	Setting
JP9E	Open
JP9F	Open
