EMK-58 IO card Settings and Configuration






UNIDENTIFIED

EMK-58

Card Type

Floppy Drive controller card

Chipset/Controller

N/A

I/O Options

Floppy drive interface (2)

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

Purpose

Location

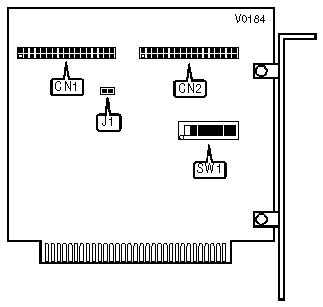

Floppy drive interface 1

CN1

Floppy drive interface 2

CN2

FLOPPY DRIVE CONFIGURATION

Drive

Drive A

Drive B

Drive C

Drive D

Type

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

360KB

On

On

On

On

On

On

On

On

720KB

On

Off

On

Off

On

Off

On

Off

1.2MB

Off

On

Off

On

Off

On

Off

On

1.44MB

Off

Off

Off

Off

Off

Off

Off

Off

I/O ADDRESS CONFIGURATION

Port

Address

J1

Primary

3F2h-3F7h

Closed



Secondary

372h-377h

Open








TOP
