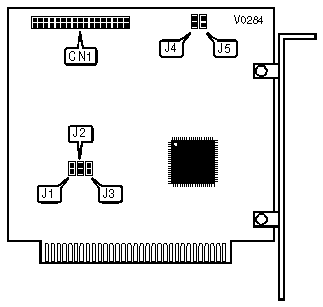

B-3100 IO card Settings and Configuration






UNIDENTIFIED

B-3100

Card Type

Floppy drive controller

Chipset/Controller

Intel Corporation

I/O Options

Floppy drive interface

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

Floppy drive interface

CN1

FLOPPY DRIVE CONFIGURATION



Drive A

Drive B

Drive Type

J1

J4

J2

J5

360KB

Closed

Open

Closed

Open

720KB

Closed

Closed

Closed

Closed

1.2MB

Open

Open

Open

Open

FACTORY CONFIGURED SETTINGS

Jumper

Setting

J3

N/A
