CT-6260 IO card Settings and Configuration

Card Type	Floppy drive controller
Chipset/Controller	Unidentified
I/O Options	Floppy drive interface, game port, parallel port, serial ports (2)
Maximum DRAM	N/A

CONNECTIONS

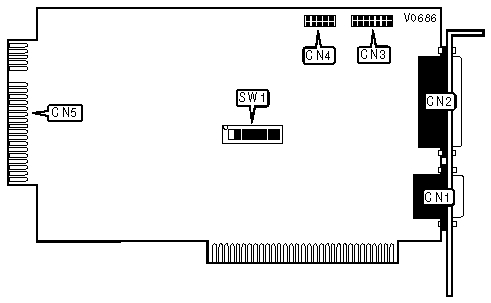

Purpose	Location	Purpose	Location
Serial port 2 - external	CN1	Serial port 1 - internal	CN4
Parallel port	CN2	Floppy drive interface	CN5
Game port	CN3

GAME PORT
Setting		SW1/1
»	Enabled	On
	Disabled	Off

CLOCK CONFIGURATION
Address		SW1/2	SW1/8
»	377h	On	On
	277h	On	Off
	Disabled	Off	N/A

PARALLEL PORT CONFIGURATION
LPT/Address		SW1/3	SW1/7
»	LPT1/378h	On	On
	LPT2/278h	On	Off
	Disabled	Off	N/A

SERIAL PORT 1 CONFIGURATION
COM/Address		SW1/5
»	COM1/3F8h	On
	Disabled	Off

SERIAL PORT 2 CONFIGURATION
COM/Address		SW1/4
»	Disabled	Off
	COM2/2F8h	On

FLOPPY DRIVE PORT
Setting		SW1/6
»	Enabled	On
	Disabled	Off
