CD-ROM INTERFACE CARD (CT1860) IO card Settings and Configuration
CREATIVE LABS, INC.
CD-ROM INTERFACE CARD (CT1860)
Card Type | CD-ROM Interface Card |
Chip Set | Unidentified |
Maximum Onboard Memory | Unidentified |
I/O Options | ICD-ROM interface |
Data Bus | 16-bit ISA |

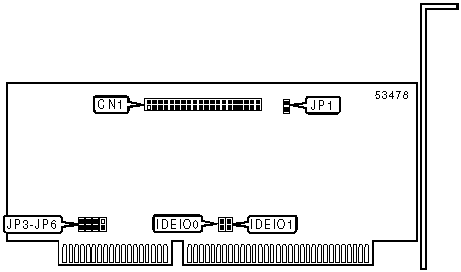

CONNECTIONS | |||
Function | Label | Function | Label |
CD-ROM interface - ATAPI | CN1 | Unidentified | JP1 |
IDE I/O ADDRESS | |||
Setting | IDE IO0 | IDE IO1 | |
168h | Open | Open | |
| » | 1E8h | Open | Closed |
170h | Closed | Open | |
Disable | Closed | Closed | |
IDE INTERRUPT SELECTION | |||||
IRQ | JP3 | JP4 | JP5 | JP6 | |
IRQ10 | Closed | Open | Open | Open | |
| » | IRQ11 | Open | Closed | Open | Open |
IRQ12 | Open | Open | Closed | Open | |
IRQ15 | Open | Open | Open | Closed | |
