INTERNAL CD-ROM INTERFACE CARD IO card Settings and Configuration






CREATIVE LABS, INC.

INTERNAL CD-ROM INTERFACE CARD

Card Type

CD-ROM interface card

Chipset/Controller

N/A

I/O Options

CD-ROM interface, external CD-Rom port, audio jack,

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

Purpose

Location

External CD-ROM port

CN1

CD-ROM interface connector

CN3

CD audio jack

CN2

CD audio cable connector

J1

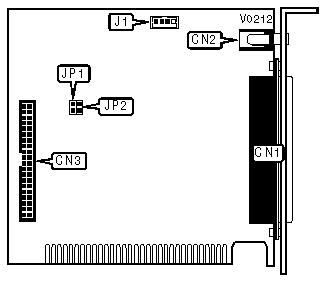

BASE I/O ADDRESS CONFIGURATION

Address

JP1

JP2

250h

Closed

Open



260h

Open

Closed








TOP
