CD-ROM INTERFACE CARD (CT1830) IO card Settings and Configuration






CREATIVE LABS, INC.

CD-ROM INTERFACE CARD (CT1830)

Card Type

CD-ROM Interface Card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

CD-ROM interfaces (2)

Data Bus

8-bit ISA

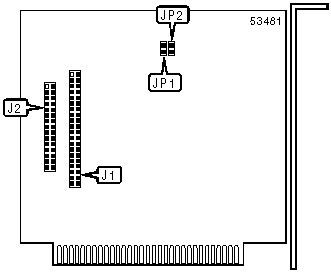

CONNECTIONS

Function

Label

Function

Label

CD-ROM interface - Creative

J1

CD-ROM interface - Sony

J2

USER CONFIGURABLE SETTINGS

Function

Label

Position

Interface I/O address 250h

JP1

Closed



Interface I/O address 260h

JP1

Open

Sony drive enable

JP2

Closed



Creative drive enable

JP2

Open
