ABOVEFUNCTION CARD IO card Settings and Configuration

Card Type	Multi I/O card
Chipset/Controller	Unidentified
I/O Options	Game port, memory, parallel port, serial port
Maximum DRAM	2MB

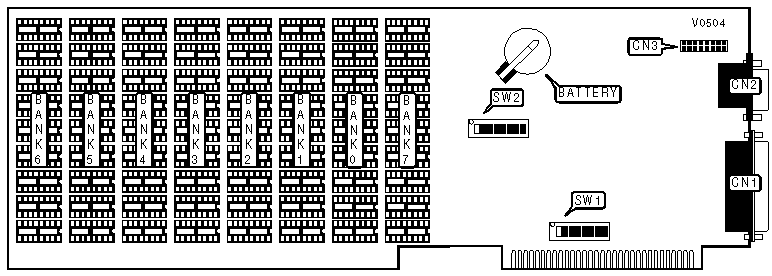

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	Game port	CN3
Serial port	CN2

FACTORY CONFIGURED SETTING
Switch	Setting
SW1/4	N/A

GAME PORT
Setting		SW1/2
»	Enabled	On
	Disabled	Off

REAL TIME CLOCK
Address/IRQ		SW1/3	SW1/5	SW1/6
»	2C0h/None	On	Off	Off
	2C0h/IRQ2	On	Off	On
	2C0h/IRQ5	On	On	Off
	Disabled	Off	Off	Off

SERIAL PORT CONFIGURATION
COM/Address/IRQ		SW2/5	SW2/6	SW1/7	SW1/8
»	COM1/3F8h/IRQ4	On	On	On	Off
	COM1/3F8h/IRQ3	On	On	Off	On
	COM1/3F8h/None	On	On	Off	Off
	COM2/2F8h/IRQ3	Off	On	Off	On
	COM2/2F8h/IRQ4	Off	On	On	Off
	COM2/2F8h/None	Off	On	Off	Off
	Disabled	Off	Off	Off	Off

PARALLEL PORT CONFIGURATION
LPT/Address		SW2/7	SW2/8
»	LPT1/378h	On	On
	LPT2/278h	Off	On
	Disabled	Off	Off

MEMORY ALLOCATION
Setting		SW1/1
»	Fill conventional memory from 256KB to 640KB	On
	All Abovefunction memory assigned to expanded memory	Off

STARTING MEMORY ADDRESS
Address		SW2/1	SW2/2	SW2/3	SW2/4
»	258h	Off	On	Off	On
	268h	On	Off	Off	On
	208h	On	On	On	On
	218h	Off	On	On	On
	2A8h	On	Off	On	Off
	2B8h	Off	Off	On	Off
	2E8h	On	Off	Off	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3	Bank 4	Bank 5	Bank 6	Bank 7
256KB	(9) 41256	None	None	None	None	None	None	None
512KB	(9) 41256	(9) 41256	None	None	None	None	None	None
768KB	(9) 41256	(9) 41256	(9) 41256	None	None	None	None	None
1MB	(9) 41256	(9) 41256	(9) 41256	(9) 41256	None	None	None	None
1.25MB	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	None	None	None
1.5MB	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	None	None
1.75MB	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	None
2MB	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256	(9) 41256
Note:Banks must be filled in numerical order. Partially filled banks will not function. The top chip of each row is the parity bit.
