286 SERIAL/PARALLEL INTERFACE BOARD IO card Settings and Configuration






AMDEK CORPORATION

286 SERIAL/PARALLEL INTERFACE BOARD

Card Type

Serial/Parallel

Chip Set

Unidentified

Maximum Onboard Memory

N/A

I/O Options

Serial port, parallel port

Hard Drives supported

None

Floppy drives supported

None

Data Bus

8-bit ISA

Card Size

Half-length, full-height

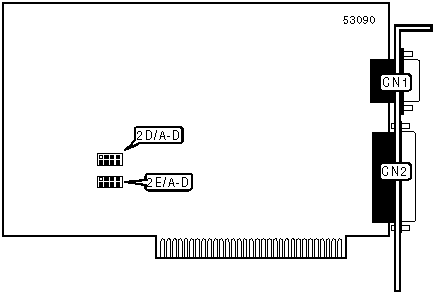

CONNECTIONS

Function

Label

Function

Label

9-pin serial port

CN1

25-pin parallel port

CN2

PARALLEL PORT ADDRESS SELECTION

Setting

2D/A

2D/B

2D/C

2D/D

LPT1

Open

Open

Closed

Closed



LPT2

Closed

Closed

Open

Open

SERIAL PORT ADDRESS SELECTION

Setting

2E/A

2E/B

2E/C

2E/D

COM1

Open

Open

Closed

Closed



COM2

Closed

Closed

Open

Open
