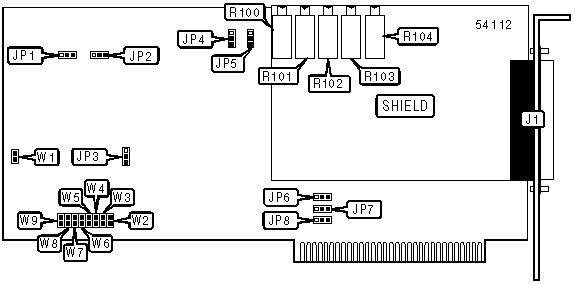

5508TC IO card Settings and Configuration

AMERICAN DATA AQUISITION CORPORATION

5508TC

Card Type
Data Acquisition
Chip Set
Unidentified
Maximum Onboard Memory
Unidentified
I/O Options
Analog input, digital input
Data Bus
8-bit ISA
Card Size
Three-quarter length

CONNECTIONS
Function
Label
Function
Label
37-pin analog/digital signals connector
J1
A/D converter range selector
R102
Unipolar offset selector
R100
Cold junction range selector
R103
Bipolar offset selector
R101
Cold junction zero selector
R104

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
A/D data coding - two’s compliment
JP1
Pins 2 & 3 closed

A/D data coding - straight binary
JP1
Pins 1 & 2 closed
»
A/D data coding - sign extend
JP2
Pins 1 & 2 closed

A/D data coding - zero extend
JP2
Pins 2 & 3 closed
»
Hardware trigger internal
JP3
Pins 2 & 3 closed

Hardware trigger external
JP3
Pins 1 & 2 closed
»
Scan disabled
W1
Open

Scan enabled
W1
Closed

A/D RANGE SELECTION
Polarity
Voltage
JP4
JP5
Bipolar
+ 5V
Pins 1 & 2 closed
Pins 1 & 2 closed
Unipolar
0 - 10V
Pins 1 & 2 closed
Pins 2 & 3 closed
Bipolar
+ 10V
Pins 2 & 3 closed
Pins 1 & 2 closed

BASE I/O ADDRESS SELECTION
Setting
W9
W8
W7
W6
W5
W4
W3
W2

000h
Open
Open
Open
Open
Open
Open
Open
Open

010h
Open
Open
Open
Open
Open
Open
Open
Closed

020h
Open
Open
Open
Open
Open
Open
Closed
Open

030h
Open
Open
Open
Open
Open
Open
Closed
Closed

040h
Open
Open
Open
Open
Open
Closed
Open
Open
»
110h
Open
Open
Open
Closed
Open
Closed
Open
Open

FB0h
Closed
Closed
Closed
Closed
Closed
Open
Closed
Closed

FC0h
Closed
Closed
Closed
Closed
Closed
Closed
Open
Open

FD0h
Closed
Closed
Closed
Closed
Closed
Closed
Open
Closed

FE0h
Closed
Closed
Closed
Closed
Closed
Closed
Closed
Open

FF0h
Closed
Closed
Closed
Closed
Closed
Closed
Closed
Closed
Note:
A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. W9 is the Most Significant Bit and jumper W2 is the Least Significant Bit. The jumpers have the following decimal values: W9=2048, W8=1024, W7=512, W6=256, W5=128, W4=64, W3=32, W2=16. Turn off the switches and add the values of the switches to obtain the correct memory address. (Close=1, Open=0)

IRQ INTERRUPT SELECTION
IRQ
JP6
JP7
JP8
»
None
Open
Open
Open

IRQ2
Open
Open
Pins 1 & 2 closed

IRQ3
Open
Pins 1 & 2 closed
Open

IRQ4
Pins 1 & 2 closed
Open
Open

IRQ5
Open
Open
Pins 2 & 3 closed

IRQ6
Open
Pins 2 & 3 closed
Open

IRQ7
Pins 2 & 3 closed
Open
Open
