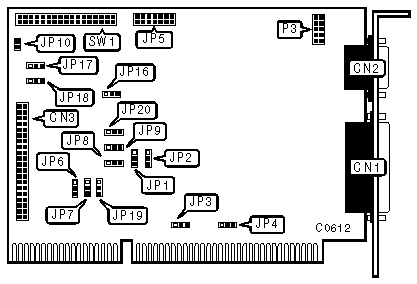

ACT MIO-PLUS MKII Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

ACT MIO-PLUS MKII

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

CONNECTIONS

Function

Location

25-pin parallel port

CN1

9-pin serial port 1 - external

CN2

40-pin IDE (AT) Interface connector

CN3

10-pin serial port 2 - internal

P3

Game port

JP5

2-pin connector - drive active LED

JP10

34-pin control cable connector - floppy drive

JP11

USER CONFIGURABLE SETTINGS

Function

Location

Setting

IDE I/O ready signal disconnected from system I/O slot

JP4

Pins 2 & 3 closed



IDE I/O ready signal connected to system I/O slot

JP4

Pins 1 & 2 closed

SERIAL PORT 2 CONFIGURATION

COM/Address

JP6

JP7

JP19

Disabled

N/A

N/A

Pins 2 & 3 closed



COM1/3F8h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



COM2/2F8h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



COM3/3E8h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



COM4/2E8h

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

SERIAL PORT 2 INTERRUPT SELECT

IRQ

JP1

IRQ3

Pins 1 & 2 closed

IRQ4

Pins 2 & 3 closed

SERIAL PORT 1 CONFIGURATION

COM/Address

JP8

JP9

JP20

COM1/3F8h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



COM2/2F8h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



COM3/3E8h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed



COM4/2E8h

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed



Disabled

N/A

N/A

Pins 2 & 3 closed

SERIAL PORT 1 INTERRUPT SELECT

IRQ

JP2

IRQ3

Pins 1 & 2 closed

IRQ4

Pins 2 & 3 closed

PARALLEL PORT CONFIGURATION

LPT/Address

JP17

JP18

LPT1/378h

Pins 1 & 2 closed

Pins 1 & 2 closed



LPT2/278h

Pins 2 & 3 closed

Pins 1 & 2 closed



Disabled

N/A

Pins 2 & 3 closed

PARALLEL PORT INTERRUPT SELECT

IRQ

JP3

IRQ7

Pins 1 & 2 closed



IRQ5

Pins 2 & 3 closed
