AL-6076D Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

AL-6076D

Data bus:

16-bit, ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

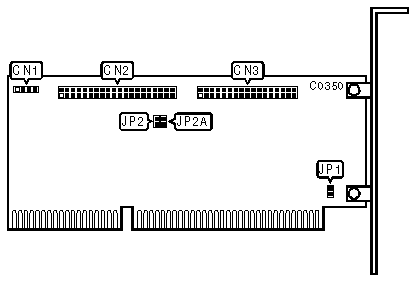

CONNECTIONS

Function

Location

4-pin connector - Drive active LED

CN1

2-pin connector - Ground

JP1

40-pin IDE(AT) Interface connector

CN2

34-pin control cable connector - floppy drive

CN3

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Hard drive enabled

JP2

open



Hard drive disabled

JP2

closed

Floppy drive enabled

JP2A

open



Floppy drive disabled

JP2A

closed
