AB-862 PLUS Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

AB-862 PLUS

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

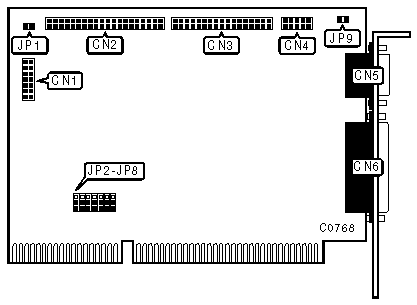

CONNECTIONS

Function

Location

Game port

CN1

40-pin IDE (AT) Interface connector

CN2

34-pin control cable connector - floppy drive

CN3

10-pin serial port 2 -internal

CN4

9-pin serial port 1 - external

CN5

25-pin parallel port

CN6

2-pin connector - drive active LED

JP1

IOCHRDY signal connector

JP9

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Serial port 1 enabled

JP2

pins 1 & 2 closed



Serial port 1 disabled

JP2

pins 2 & 3 closed

Game port enabled

JP3

pins 1 & 2 closed



Game port disabled

JP3

pins 2 & 3 closed

Floppy drive enabled

JP4

pins 1 & 2 closed



Floppy drive disabled

JP4

pins 2 & 3 closed

Parallel port address = 378h

JP5

pins 1 & 2 closed



Parallel port address = 278h

JP5

pins 2 & 3 closed

USER CONFIGURABLE SETTINGS

Function

Location

Setting

IDE port enabled

JP6

pins 1 & 2 closed



IDE port disabled

JP6

pins 2 & 3 closed



Serial port 2 enabled

JP7

pins 1 & 2 closed



Serial port 2 disabled

JP7

pins 2 & 3 closed

Hard drive installed (enabled)

JP8

pins 1 & 2 closed



Hard drive not installed (disabled)

JP8

pins 2 & 3 closed
