ASTRA IDE I/O CARD (2S, 1P, 1G) Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

ASTRA IDE I/O CARD (2S, 1P, 1G)

Data bus:

16-bit ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE(AT) drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

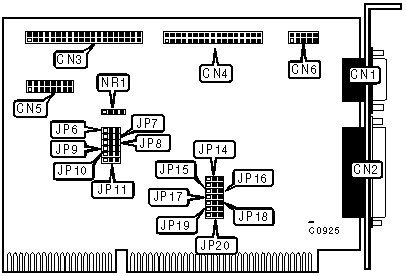

CONNECTIONS

Function

Location

9-pin serial port 1 - external

CN1

25-pin parallel port - external

CN2

40-pin primary IDE(AT) connector

CN3

34-pin cable connector - floppy drive

CN4

16-pin game port

CN5

10-pin serial port 2 - internal

CN6

4-pin connector - drive active LED

NR1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Floppy drive controller enabled

JP6

pins 1 & 2 closed

Floppy drive interface disabled

JP6

pins 2 & 3 closed

Floppy drive is primary (3F1h-3F7h)

JP7

pins 1 & 2 closed

Floppy drive is secondary (371h-377h)

JP7

pins 2 & 3 closed

IDE(AT) interface enabled

JP8

pins 1 & 2 closed

IDE(AT) interface disabled

JP8

pins 2 & 3 closed

IDE primary address is 1F0h-1F7h

JP9

pins 1 & 2 closed

IDE secondary address is 170h-177h

JP9

pins 2 & 3 closed

USER CONFIGURABLE SETTINGS CONTINUED

Function

Location

Setting



Factory configured - do not alter

JP10

N/A



Factory configured - do not alter

JP11

N/A



Game port enabled

JP20

pins 1 & 2 closed



Game port disabled

JP20

pins 2 & 3 closed

PARALLEL PORT ADDRESS SELECTION

LPT

JP14

JP15

LPT1 (378h)

pins 1 & 2 closed

pins 1 & 2 closed

LPT2 (278h)

pins 2 & 3 closed

pins 1 & 2 closed

Disabled

N/A

pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION

COM

JP16

JP17

COM1 (3F8h)

pins 1 & 2 closed

pins 1 & 2 closed

COM3 (3E8h)

pins 2 & 3 closed

pins 1 & 2 closed

Disabled

N/A

pins 2 & 3 closed

SERIAL PORT 2 ADDRESS SELECTION

COM

JP18

JP19

COM2 (2F8h)

pins 1 & 2 closed

pins 1 & 2 closed

COM4 (2E8h)

pins 2 & 3 closed

pins 1 & 2 closed

Disabled

N/A

pins 2 & 3 closed
