AT BUS/FLOPPY DISK CONTROLLER (VER. 2) Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

AT BUS/FLOPPY DISK CONTROLLER (VER. 2)

Data Bus

16-bit ISA

Card Size

Half-length, half-height card

Hard Drives supported

Two IDE (AT) drives

Floppy drives supported

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

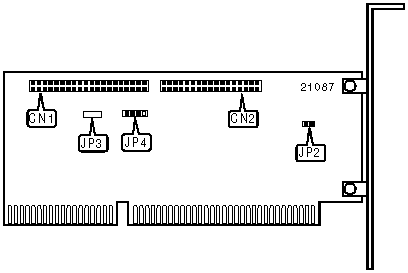

CONNECTIONS

Function

Location

Function

Location

40-pin IDE (AT) Interface connector-internal

CN1

4-pin connector - drive active LED

JP4

34-pin control cable connector-floppy drive

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

Floppy drive enabled

JP2

Open



Floppy drive disabled

JP2

Closed

Factory configured - do not alter

JP3

Unidentified
