AB-862G SUPER I/O CARD Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

AB-862G SUPER I/O CARD

Data bus:

16-bit ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE(AT) drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

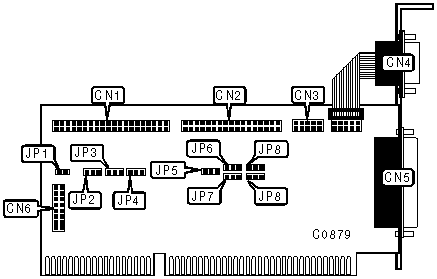

CONNECTIONS

Function

Location

40-pin primary IDE(AT) connector

CN1

34-pin cable connector - floppy drive

CN2

10-pin serial port 2 - internal

CN3

9-pin serial port 1 - external, 10-pin serial port 1 internal

CN4

25-pin parallel port - external

CN5

16-pin game port

CN6

2-pin connector - drive active LED

JP1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Hard disk is present

JP2

pins 1 & 2 closed

Hard disk is not present

JP2

pins 2 & 3 closed

Game port enabled

JP3

pins 1 & 2 closed

Game port disabled

JP3

pins 2 & 3 closed

Floppy drive interface enabled

JP4

pins 1 & 2 closed

Floppy drive interface disabled

JP4

pins 2 & 3 closed

IOCHRDY signal enabled

JP5

pins 1 & 2 closed

IOCHRDY signal disabled

JP5

pins 2 & 3 closed

USER CONFIGURABLE SETTINGS

Function

Location

Setting

IDE interface enabled

JP6

pins 1 & 2 closed

IDE interface disabled

JP6

pins 2 & 3 closed

Serial port 1 enabled

JP7

pins 1 & 2 closed

Serial port 1 disabled

JP7

pins 2 & 3 closed

Parallel port address is 378h

JP8

pins 1 & 2 closed

Parallel port address is 278h

JP8

pins 2 & 3 closed

Serial port 2 enabled

JP9

pins 1 & 2 closed

Serial port 2 disabled

JP9

pins 2 & 3 closed
