SP-160 Hard Disk/Floppy Controller Settings and Configuration

Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) Interface drives and up to seven SCSI devices
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

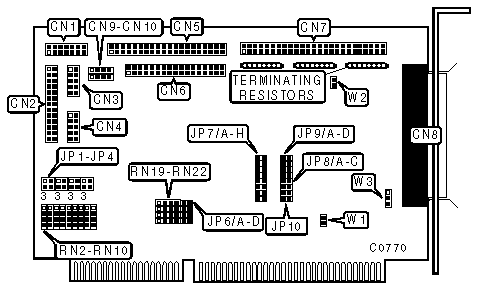

CONNECTIONS
Function	Location
Game port	CN1
25-pin parallel port	CN2
10-pin serial port 1	CN3
10-pin serial port 2	CN4
40-pin IDE (AT) interface connector	CN5
34-pin control cable connector - floppy drive	CN6
50-pin SCSI connector - internal	CN7
50-pin SCSI connector - external	CN8
4-pin connector - drive active LED (IDE)	CN9
4-pin connector - drive active LED (SCSI)	CN10

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive enabled	JP1	pins 1 & 2 closed
	Floppy drive disabled	JP1	pins 3 & 4 closed
»	Factory configured - do not alter	JP4	n/a
»	AHA-1520 driver compatibility enabled	JP7/jumper A	open
	6360 compatibility enabled	JP7/jumper A	closed
»	Factory configured - do not alter	JP7/jumper B	n/a

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Disconnect/reselect enabled	JP7/jumper C	closed
	Disconnect/reselect disabled	JP7/jumper C	open
»	Synchronous negotiation enabled	JP7/jumper D	closed
	Synchronous negotiation disabled	JP7/jumper D	open
»	Boot-up with INT19 enabled	JP7/jumper E	closed
	Boot-up with INT19 disabled	JP7/jumper E	open
»	Factory configured - do not alter	JP7/jumper F	n/a
»	Factory configured - do not alter	JP7/jumper G	n/a
»	Factory configured - do not alter	JP7/jumper H	n/a
»	SCSI parity enabled	JP9/jumper D	open
	SCSI parity disabled	JP9/jumper D	closed
»	SCSI address = 340h	JP10	open
	SCSI address = 140h	JP10	closed
»	Factory configured - do not alter	W1	n/a
»	Factory configured - do not alter	W2	n/a
»	Factory configured - do not alter	W3	n/a

IDE PORT CONFIGURATION
Address		JP2	JP3
»	Primary	pins 1 & 2 closed	pins 1 & 2 closed
	Secondary	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled	pins 2 & 3 closed	all pins open

SCSI INTERRUPT SELECT
IRQ		JP6/A	JP6/B	JP6/C	JP6/D	RN19	RN20	RN21	RN22
»	11	open	open	closed	open	not installed	installed	not installed	not installed
	9	closed	open	open	open	not installed	not installed	not installed	installed
	10	open	closed	open	open	not installed	not installed	installed	not installed
	12	open	open	open	closed	installed	not installed	not installed	not installed
Note:RN19-RN22 are four-pin resistors.

BIOS ADDRESS - JP8
Address		Jumper A	Jumper B	Jumper C
»	D8000h	closed	closed	closed
	C8000h	open	closed	closed
	CC000h	closed	open	open
	D0000h	closed	open	closed
	D4000h	closed	closed	open
	Disabled	open	open	closed

SCSI ID - JP9
ID#		Jumper A	Jumper B	Jumper C
»	ID7	closed	closed	closed
	ID0	open	open	open
	ID1	closed	open	open
	ID2	open	closed	open
	ID3	closed	closed	open
	ID4	open	open	closed
	ID5	closed	open	closed
	ID6	open	closed	closed

SCSI ID
IRQ		JP6/A	JP6/B	JP6/C	JP6/D	RN19	RN20	RN21	RN22
»	IRQ11	open	open	closed	open	not installed	installed	not installed	not installed
	IRQ9	closed	open	open	open	not installed	not installed	not installed	installed
	IRQ10	open	closed	open	open	not installed	not installed	installed	not installed
	IRQ12	open	open	open	closed	installed	not installed	not installed	not installed

PARALLEL PORT CONFIGURATION
LPT/Address		RN2	RN3	RN4
»	LPT2/378h	installed	not installed	not installed
	LPT3/278h	not installed	installed	not installed
	Disabled	not installed	not installed	installed
Note:RN2-RN4 are four-pin resistors.

SERIAL PORT 1 CONFIGURATION
COM/Address		RN8	RN9	RN10
»	COM1/3F8h	installed	not installed	not installed
	COM3/3E8h	not installed	installed	not installed
	Disabled	not installed	not installed	installed
Note:RN8-RN10 are four-pin resistors.

SERIAL PORT 2 CONFIGURATION
COM/Address		RN5	RN6	RN7
»	COM2/2F8h	installed	not installed	not installed
	COM4/2E8h	not installed	installed	not installed
	Disabled	not installed	not installed	installed
Note:RN5-RN7 are four-pin resistors.
