CAPTIVATOR video card Settings and Configuration
VIDEOLOGIC, INC.
CAPTIVATOR
Card Type | Video card |
Video Chip Set | Unidentified |
Highest Resolution Supported | 640 x 480 |
Maximum Video Memory | Unidentified |
Data Bus | 16-bit ISA |
Video Types Supported | VGA |

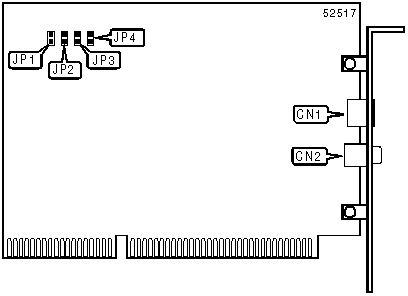

CONNECTIONS | |||
Function | Label | Function | Label |
S-Video connector | CN1 | RCA connector | CN2 |
BASE I/O ADDRESS SELECTION | ||||
Setting | JP1 | JP2 | JP3 | JP4 |
300h | Closed | Open | Open | Open |
310h | Open | Closed | Open | Open |
320h | Open | Open | Closed | Open |
330h | Open | Open | Open | Closed |
