MODEL 2000-0204 MPEG-2 PCI DECODER video card Settings and Configuration

Card Type	MPEG decoder
Video Chip Set	Unidentified
Maximum Video Memory	2MB DRAM
Video Types Supported	XVGA
Highest Resolution Supported	704 x 480
Data Bus	32-bit PCI

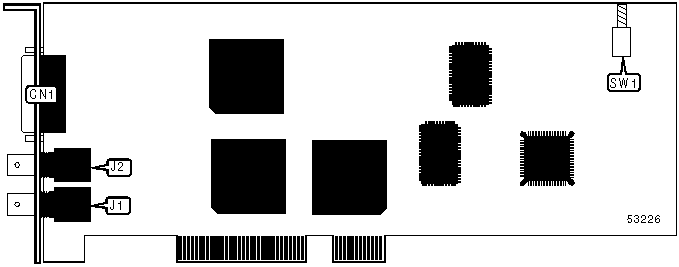

CONNECTIONS
Function	Label	Function	Label
15-pin audio connector	CN1	Genlock in	J2
Video out	J1	Reset switch	SW1

VIDEO MEMORY CONFIGURATION

Memory type and location are unidentified.
