GRAFIXSTAR 400 video card Settings and Configuration

Card Type	Video card
Video Chip Set	S3
Maximum Video Memory	2MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

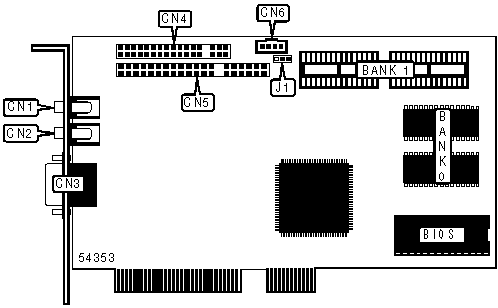

CONNECTIONS
Function	Label	Function	Label
Audio in	CN1	LPB feature connector	CN4
Audio out	CN2	Daughter card connector	CN5
15-pin analog video port	CN3	Audio in - internal	CN6

USER CONFIGURABLE SETTINGS
Function	Label	Position
Daughter board attached	J1	Pins 1 & 2 closed
Daughter board not attached	J1	Pins 2 & 3 closed

VIDEO MEMORY CONFIGURATION (DRAM)
Size	Bank 0	Bank 1
1MB	(2) 512KB x 8	None
2MB	(2) 512KB x 8	(2) 512KB x 8
