TELESOUND EX16 video card Settings and Configuration

Card Type	Sound Card
Chip Set	Unidentified
I/O Options	CD-ROM interface, game/MIDI port, line in, line out, microphone, speaker, wavetable
Data Bus	16-bit ISA

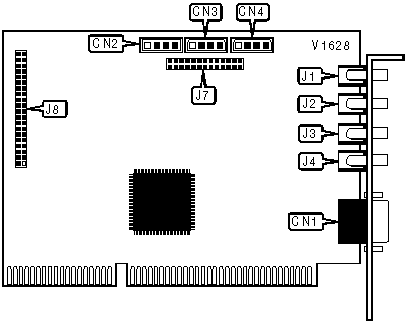

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	Line in	J3
CD-ROM audio in	CN3	Microphone in	J4
CD-ROM audio out	CN4	Wavetable	J7
Speaker jack	J1	IDE interface	J8
Line out	J2

MISCELLANEOUS TECHNICAL NOTES

Note: The purpose of CN2 is unidentified
