TELEMPEG PRO video card Settings and Configuration

Card Type	Video MPEG card,
Video Chip Set	Philips
Highest Resolution Supported	1024 x 768
Maximum Video Memory	Unidentified
Data Bus	16-bit ISA
Video Types Supported	XVGA

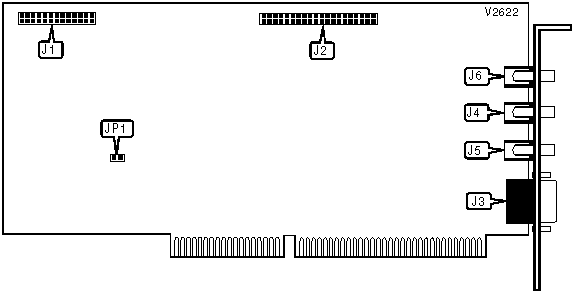

CONNECTIONS
Function	Label	Function	Label
Feature connector	J1	Video out	J4
TeleTune Pro connector	J2	Loopback connector	J5
15-pin analog video port	J3	Audio out	J6

MISCELLANEOUS TECHNICAL NOTE

Note: The configuration of JP1 is unidentified.
