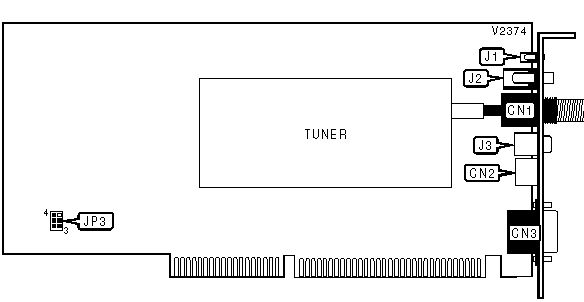

M200 CAPTURE TV video card Settings and Configuration
TEKRAM TECHNOLOGY CO., LTD.
M200 CAPTURE TV
Card Type | Video capture board/Tuner card |
Video Chip Set | Unidentified |
Highest Resolution Supported | 1024 x 768 |
Maximum Video Memory | None |
Data Bus | 16-bit ISA |
Video Types Supported | XVGA |
CONNECTIONS | |||
Function | Label | Function | Label |
RF in | CN1 | IR sensor in | J1 |
S-video | CN2 | Audio out | J2 |
VGA in/out | CN3 | Video in | J3 |
I/O ADDRESS SELECTION | ||
Address | JP3 | |
B18h - B1Ah | Pins 1 & 2, 4 & 5 closed | |
| » | B28h - B2Ah | Pins 1 & 2, 5 & 6 closed |
B38h - B3Ah | Pins 2 & 3, 4 & 5 closed | |
B48h - B4Ah | Pins 2 & 3, 5 & 6 closed | |
