GRAPHICS DISPLAY ADAPTER (250-3043) video card Settings and Configuration
TANDY/RADIO SHACK
GRAPHICS DISPLAY ADAPTER (250-3043)
Card Type | Video card |
Video Processor | Unidentified |
Data Bus | 8-bit ISA |
Video Types Supported | CGA |
Highest Resolution Supported | 640 x 200 |

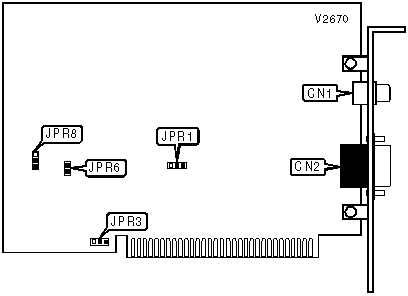

CONNECTIONS | |||
Function | Label | Function | Label |
Composite video out | CN1 | 9-pin color video out | CN2 |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | Factory configured - do not alter | JPR1 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | JPR3 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | JPR6 | Closed |
| » | Card will operate in monochrome mode | JPR8 | Pins 2 & 3 closed |
Card will operate in color mode | JPR8 | Pins 1 & 2 closed | |
