COLOR/GRAPHICS MONITOR ADAPTER video card Settings and Configuration
TANDON CORPORATION
COLOR/GRAPHICS MONITOR ADAPTER
Category | Video |
Video Types Supported | CGA |
Video Processor | Unidentified |
Highest Resolution Supported | Unidentified |
Data Bus Type | 8-bit ISA |
Memory Type | Unidentified |
Maximum Onboard Memory | Unidentified |

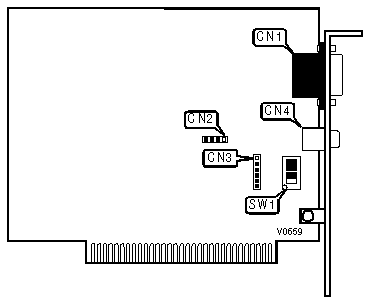

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
9-pin serial connector | CN1 | Light pen connector | CN3 |
RF modulator connector | CN2 | RCA connector | CN4 |
MONITOR CONFIGURATION | |
Monitor type | SW1/1 |
Monochrome monitor | On |
Color/graphics monitor | Off |
MONITOR TYPE SELECT | |
Color type | SW1/2 |
Composite monochrome monitor | On |
Color/graphics monitor | Off |
Note:SW1/2 is only applicable if SW1/1 is set to OFF. This switch allows for a composite monochrome display to be used in place of a more expensive color monitor, with the same advanced features. | |
THROUGHPUT SPEED SELECT | |
Setting | SW1/3 |
Normal operation | On |
Display buffer enable | Off |
SCROLL FLICKER SELECT | |
Setting | SW1/4 |
Disable | Off |
Enable | On |
