16-BIT SVGA GRAPHICS ADAPTER (250-4056) video card Settings and Configuration
TANDY / RADIO SHACK CORPORATION
16-BIT SVGA GRAPHICS ADAPTER (250-4056)
Card Type | Video card |
Video Processor | Unidentified |
Maximum Onboard Memory | 512KB DRAM |
Data Bus | 16-bit ISA |
Video Types Supported | XVGA |
Highest Resolution Supported | 1024 x 768 |
CONNECTIONS | |
Function | Label |
15-pin VGA port | J3 |

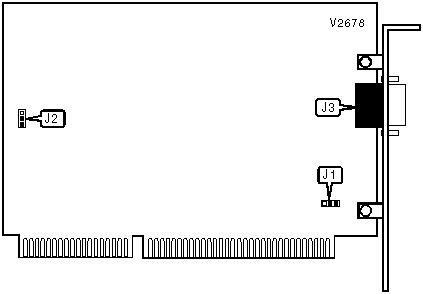

USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
» | IRdisabled | J1 | Pins 2 & 3 closed |
| IRenabled | J1 | Pins 1 & 2 closed |
» | Card will use 16-bit BIOS transfers | J2 | Pins 1 & 2 closed |
| Card will use 8-bit BIOS transfers | J2 | Pins 2 & 3 closed |
