STARFIGHTER AGP - 8MB (SFA-334, SFA-336) video card Settings and Configuration






REAL 3D

STARFIGHTER AGP - 8MB (SFA-334, SFA-336)

Card Type

Video card

Video Chip Set

Intel 440LX/BX

Maximum Video Memory

8MB SDRAM/SGRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

AGP

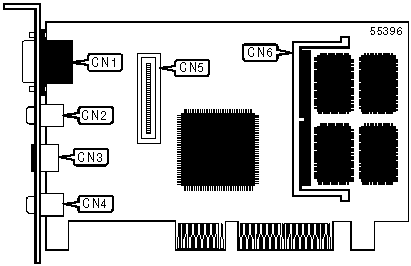

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Composite connector

CN4

Composite connector

CN2

DVD connector (optional)

CN5

S-Video connector

CN3

Memory upgrade socket

CN6
