STARFIGHTER AGP - 8MB (SFA-350, SFA-301) video card Settings and Configuration






REAL 3D

STARFIGHTER AGP - 8MB (SFA-350, SFA-301)

Card Type

Video card

Video Chip Set

Intel 440LX/BX

Maximum Video Memory

8MB SDRAM/SGRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

AGP

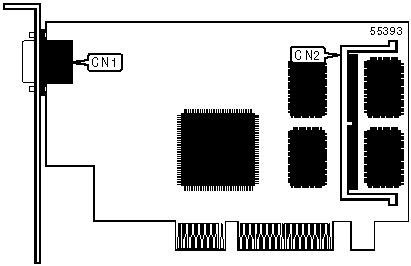

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Memory upgrade socket

CN3

MISCELLANEOUS TECHNICAL NOTES

Available with ATX or NLX bracket. Also available with 4MB SGRAM.
