CINEMASTER video card Settings and Configuration

Card Type	DVD playback card
Video Chip Set	S3
Maximum Video Memory	Unidentified
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1280
Data Bus	32-bit PCI

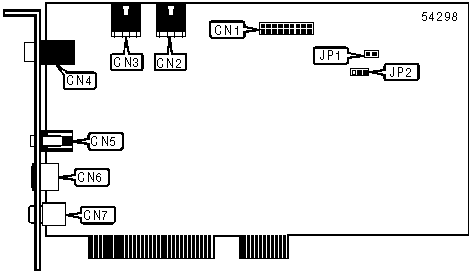

CONNECTIONS
Function	Label	Function	Label
Video port connector-internal	CN1	Line out	CN5
Audio in-CD ROM	CN2	S-video out	CN6
Audio in- CD ROM	CN3	Composite video out	CN7
S/PDIF out	CN4

VIDEO INTERFACE
Setting		JP1	JP2
»	Video inlay	Open	Open
	VMI 1.4	Closed	Pins 2 & 3 closed
	LBP	Closed	Pins 1 & 2 closed
