BUSTER video card Settings and Configuration
QUADRANT INTERNATIONAL, INC.
BUSTER
Card Type | Video capture/Tuner card |
Video Chip Set | Unidentified |
Maximum Video Memory | Unidentified |
Video Types Supported | XVGA |
Highest Resolution Supported | 1600 x 1200 |
Data Bus | 32-bit PCI |

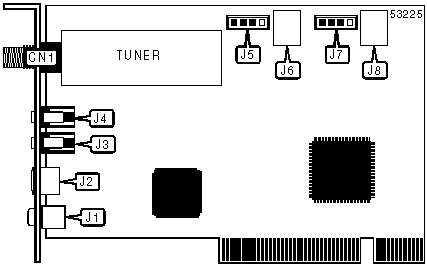

CONNECTIONS | |||
Function | Label | Function | Label |
Coax connector | CN1 | Audio in (internal) | J5 |
Composite in | J1 | Audio in (internal) | J6 |
S-video in | J2 | Audio out (internal) | J7 |
Audio in (external) | J3 | Audio out (internal) | J8 |
Audio out (external) | J4 | ||
