TD9440-2/PCI/SMT/2L video card Settings and Configuration

Card Type	Video card
Video Chip Set	TGUI
Highest Resolution Supported	1600 x 1200
Maximum Video Memory	2MB DRAM
Data Bus	PCI
Video Types Supported	XVGA

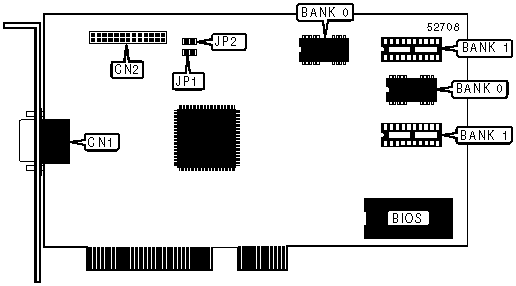

CONNECTIONS
Function	Label	Function	Label
Video port	CN1	Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
Internal BIOS selected	JP1	Open
External BIOS selected	JP1	Closed
Normal DRAM selected	JP2	Open
EDO DRAM selected	JP2	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 16	None
2MB	(2) 256K x 16	(2) 256K x 16
