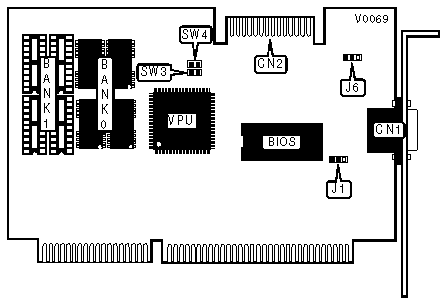

QD-TVGA 8900 LC2 video card Settings and Configuration
QDI
QD-TVGA 8900 LC2
Category | Video |
Video Types Supported | XVGA |
Video Processor | TVGA8900C |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1024KB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
VIDEO INTERRUPT SELECTION | ||
IRQ 2/9 | J1 | |
| » | Disabled | Pins 2 & 3 closed |
Enabled | Pins 1 & 2 closed | |
MONITOR DETECT CONFIGURATION | ||
Setting | J6 | |
| » | Normal operation | Pins 1 & 2 closed |
Non-standard color | Open | |
Non-standard monochrome | Pins 2 & 3 closed | |
SCAN RATE SELECTION | ||
Rate | SW3 | |
| » | 800 x 600 | Closed |
1024 x 768 | Open | |
BUS WIDTH AUTODETECT CONFIGURATION | ||
Autodetect | SW4 | |
| » | Enabled | Open |
Disabled | Closed | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
512KB | (4) 44256 | None |
1024KB | (4) 44256 | (4) 44256 |
