TVGA9680 PCI/SMT video card Settings and Configuration

QDI COMPUTER, INC.

TVGA9680 PCI/SMT

Card Type
Video card
Video Chip Set
9680
Highest Resolution Supported
1600 x 1200
Maximum Video Memory
2MB DRAM
Data Bus
PCI
Video Types Supported
XVGA

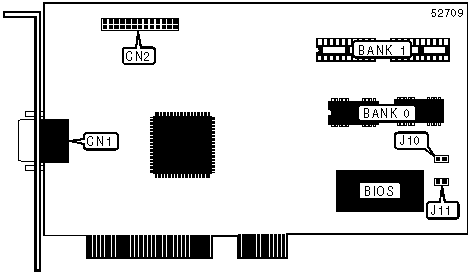

CONNECTIONS
Function
Label
Function
Label
Video port
CN1
Feature connector
CN2

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(8) 1024KB x 1
None
2MB
(8) 1024KB x 1
(2) 4096KB x 1

MCLK EDO DRAM CONFIGURATION
Speed
J10
J11
»
57 or 61
Closed
Open

52 or 57
Closed
Closed

65 or 72
Open
Open

61 or 65
Open
Closed
