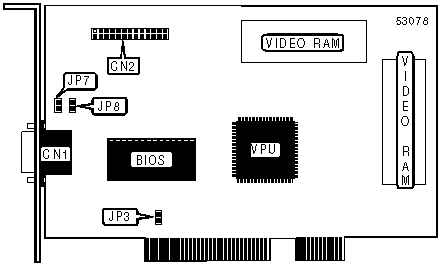

MVGA-CL544XP video card Settings and Configuration
PROLINK COMPUTER, INC.
MVGA-CL544XP
Card Type | Video |
Video Chip Set | Cirrus Logic |
Maximum Video Memory | 2MB DRAM (EDO) |
Video Types Supported | XVGA |
Highest Resolution Supported | 1280 x 1024 |
Data Bus | 32-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Feature connector | CN2 |
USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
INTA enabled | JP3 | Closed |
INTA disabled | JP3 | Open |
DDC2B CONFIGURATION | ||
Setting | JP7 | JP8 |
Enabled | Closed | Closed |
Disabled | Open | Open |
DRAM CONFIGURATION | ||
Exact configuration is unidentified. | ||
