MVGA-CL5446P video card Settings and Configuration
PROLINK COMPUTER, INC.
MVGA-CL5446P
Card Type | Video |
Chip Set | Cirrus Logic, Inc. |
Maximum Onboard Memory | 2MB DRAM |
Data Bus | 32-bit PCI |
Video Types Supported | XVGA |
Highest Resolution Supported | 1280 x 1024 |

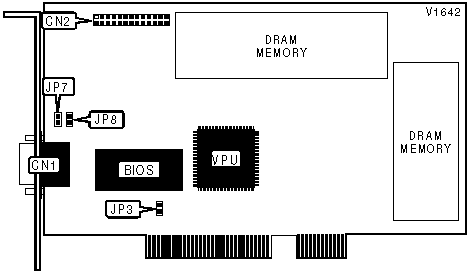

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Feature connector | CN2 |
USER CONFIGURABLE SETTINGS | ||
Setting | Label | Position |
INTA enabled | JP3 | Closed |
INTA disabled | JP3 | Open |
DDC2B CONFIGURATION | ||
Setting | JP7 | JP8 |
Enabled | Closed | Closed |
Disabled | Open | Open |
DRAM CONFIGURATION |
Note: The exact memory configuration is unidentified. |
