MVGA-CL544XPII video card Settings and Configuration
PROLINK COMPUTER, INC.
MVGA-CL544XPII
Card Type | Video |
Video Chip Set | Cirrus Logic |
Maximum Video Memory | 2MB DRAM (EDO) |
Video Types Supported | XVGA |
Highest Resolution Supported | 1280 x 1024 |
Data Bus | 32-bit PCI |

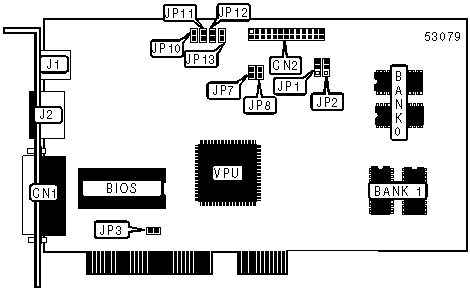

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Composite video out | J1 |
Feature connector | CN2 | S-video out | J2 |
FEATURE CONNECTOR CONFIGURATION | |||
Setting | JP1 | JP2 | |
| » | Normal | Pins 2 & 3 closed | Pins 2 & 3 closed |
Connected to TV card (PX4072+) | Pins 1 & 2 closed | Pins 1 & 2 closed | |
DDC2B CONFIGURATION | |||
Setting | JP7 | JP8 | |
| » | Disabled | Open | Open |
Enabled | Closed | Closed | |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | INTA enabled | JP3 | Closed |
INTA disabled | JP3 | Open | |
| » | NTSC mode enabled | JP10 | Open |
PAL mode enabled | JP10 | Closed | |
| » | Underscan mode enabled | JP11 | Open |
Overscan mode enabled | JP11 | Closed | |
ANTI-FLICKER MODE SELECTION | |||
Setting | JP12 | JP13 | |
0:1:0 overaging | Open | Open | |
| » | 1:3:1 overaging | Open | Closed |
1:2:1 overaging | Closed | Open | |
1:1:0 overaging | Closed | Closed | |
DRAM CONFIGURATION | ||
Exact configuration is unidentified. | ||
