PRISM ELAN, PRISM ELAN+ video card Settings and Configuration

Card Type	Video card
Video Chip Set	Prism Imaging Systems
Maximum Video Memory	512KB DRAM
Video Types Supported	Monochrome, CGA, EGA, VGA
Highest Resolution Supported	1024 x 768
Data Bus	8-bit ISA

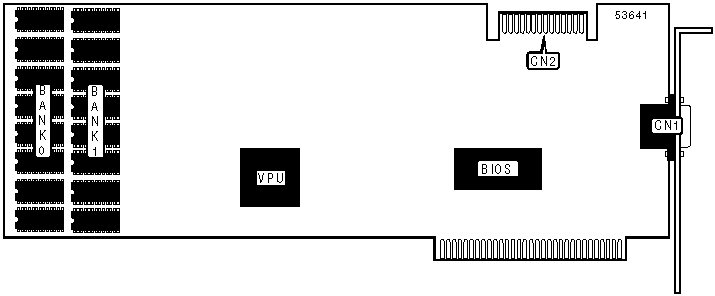

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(8) 32K x 8	None
512KB	(8) 32K x 8	(8) 32K x 8
