PRISM BASIC video card Settings and Configuration

Card Type	Video card
Video Chip Set	Prism Imaging Systems
Maximum Video Memory	256KB DRAM
Video Types Supported	Monochrome, CGA, EGA, VGA
Highest Resolution Supported	1024 x 768
Data Bus	8-bit ISA

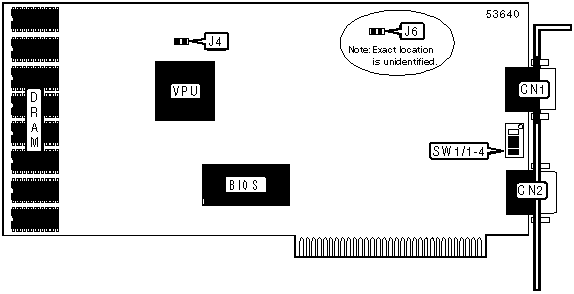

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	9-pin digital video port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Color monitor	J4	Closed
	Monochrome monitor	J4	Open

POWER-UP MONITOR MODE
Mode	SW1/1	SW1/2	SW1/3	SW1/4
VGA	On	On	On	On
CGA	On	On	Off	On
MDA	Off	On	Off	On
EGA	On	Off	Off	On
MGA	Off	Off	Off	On

WAIT STATE SELECTION
Setting		J6
»	0	On
	1	Off
