WW1600 video card Settings and Configuration






PIXELWORKS, INC.

WW1600

Category

Video

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1600 x 1200

Data Bus Type

16-bit ISA

Memory Type

Unidentified

Maximum Onboard Memory

Unidentified

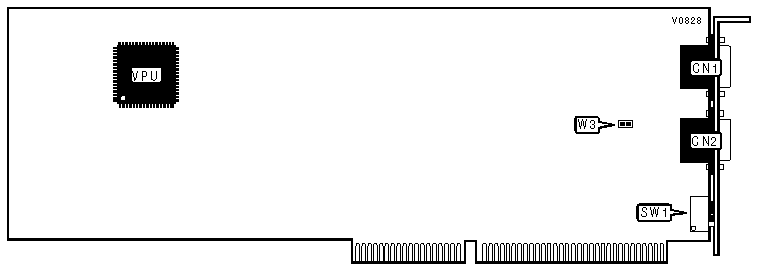

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

9-pin VGA pass-through port

CN2

3/5 WIRE MONOCHROME VIDEO SIGNAL SELECT

Setting

W3

5-wire external separate sync video signal

Open

3-wire internal sync video signal

Closed

FACTORY CONFIGURED SETTINGS

Switch

Setting

SW1/1

Off

SW1/2

Off

I/O ADDRESS

Address

SW1/3

SW1/4

230h

Off

Off

240h

Off

On

330h

On

Off

340h

On

On
