WW1280, WW1280/PLUS video card Settings and Configuration
PIXELWORKS, INC.

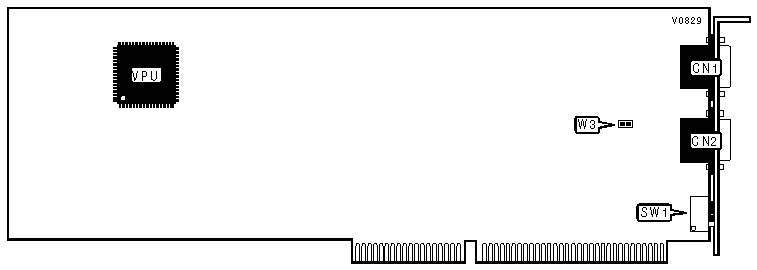

WW1280, WW1280/PLUS
Category | Video |
Video Types Supported | XVGA |
Video Processor | Unidentified |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | Unidentified |
Maximum Onboard Memory | Unidentified |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | 9-pin VGA pass-through port | CN2 |
3/5 WIRE MONOCHROME VIDEO SIGNAL SELECT | ||
Setting | W3 | |
| » | 5-wire external separate sync video signal | Open |
3-wire internal sync video signal | Closed | |
VGA PASS-THROUGH | ||
» Setting | SW1/1 | |
| » | VGA pass-through or dual monitor mode enabled | Off |
| » | On-board VGA enabled | On |
I/O ADDRESS | |||
» Address | SW1/3 | SW1/4 | |
| » | 230h | Off | Off |
| » | 240h | Off | On |
| » | 330h | On | Off |
| » | 340h | On | On |
FACTORY CONFIGURED SETTINGS | |
Switch | Setting |
SW1/2 | Off |
