VG-5600/VG-5600H video card Settings and Configuration
DIAMOND FLOWER, INC.
VG-5600/VG-5600H
Category | Video |
Video Types Supported | XVGA |
Video Processor | ET4000 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1024KB |

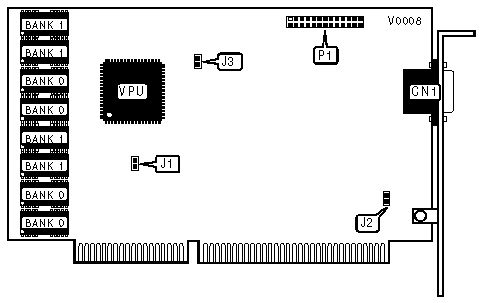

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VESA Feature port | P1 |
INTERRUPT SELECTION | ||
| IRQ 2/9 | J2 | |
| » | Disabled | Open |
| Enabled | Closed | |
WAIT STATE SELECTION | ||
Setting | J3 | |
| » | 1 wait state (normal operation) | Pins 2 & 3 closed |
0 wait state (enhanced operation) | Pins 1 & 2 closed | |
FACTORY CONFIGURED - DO NOT ALTER | |
Jumper | Position |
J1 | Pins 1 & 2 closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
512KB | (4) 44256 | NONE |
1024KB | (4) 44256 | (4) 44256 |
