WG-9000P video card Settings and Configuration

Card Type	Video card
Video Chip Set	Weitek
Maximum Video Memory	2MB VRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

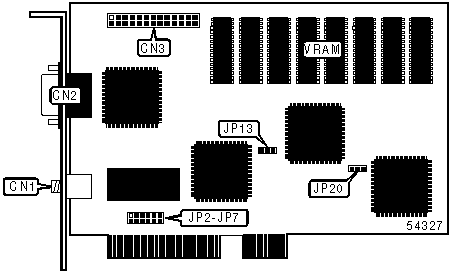

CONNECTIONS
Function	Label	Function	Label
Speaker/line out	CN1	VESA feature connector	CN3
15-pin analog video connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured – do not alter	JP7	On
»	Factory configured – do not alter	JP8	On

PCI INTERRUPT SELECTION
Setting	JP2	JP3	JP4	JP5	JP6	JP7
INTA	Closed	Open	Open	Open	Open	Open
INTB	Open	Closed	Open	Open	Open	Open
INTC	Open	Open	Closed	Open	Open	Open
INTD	Open	Open	Open	Closed	Open	Open
PERR #	Open	Open	Open	Open	Closed	Open
SERR #	Open	Open	Open	Open	Open	Closed
