STANDARD JERONIMO J3 video card Settings and Configuration
APPIAN TECHNOLOGY

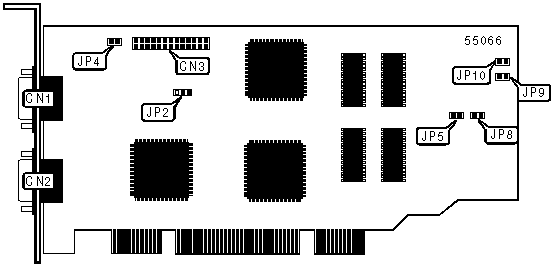

STANDARD JERONIMO J3
Card Type | Video card |
Video Chip Set | Cirrus Logic |
Video Types Supported | VGA, XVGA |
Highest Resolution Supported | 1600 x 1200 |
Maximum Video Memory | Unidentified |
Data Bus | 64-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port 1 | CN1 | VESA feature connector | CN3 |
15-pin analog video port 2 | CN2 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Interrupt disabled | JP2 | Pins 1 & 2 closed |
Interrupt enabled | JP2 | Pins 2 & 3 closed | |
Primary VGA enabled | JP4 | Open | |
Primary VGA disabled | JP4 | Closed | |
Secondary VGA enabled | JP5 | Open | |
Secondary VGA disabled | JP5 | Closed | |
| » | Factory configured - do not alter - multiple board support | JP8 | Unidentified |
| » | Factory configured - do not alter - multiple board support | JP9 | Unidentified |
| » | Factory configured - do not alter - multiple board support | JP10 | Unidentified |
