IMPULSE A2 video card Settings and Configuration

APPIAN TECHNOLOGY

IMPULSE A2

Card Type
Video card
Video Chip Set
Cirrus Logic
Highest Resolution Supported
1280 x 1024
Maximum Video Memory
4MB DRAM
Data Bus
32-bit PCI
Video Types Supported
XVGA

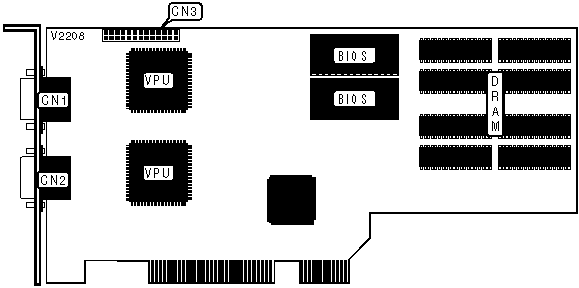

CONNECTIONS
Function
Label
Function
Label
15-pin analog video port
CN1
VESA feature connector
CN3
15-pin analog video port
CN2
