STANDARD JERONIMO J2 video card Settings and Configuration
APPIAN TECHNOLOGY
STANDARD JERONIMO J2
Card Type | Video card |
Video Chip Set | Cirrus Logic |
Video Types Supported | VGA, XVGA |
Highest Resolution Supported | 1600 x 1200 |
Maximum Video Memory | Unidentified |
Data Bus | 32-bit PCI |

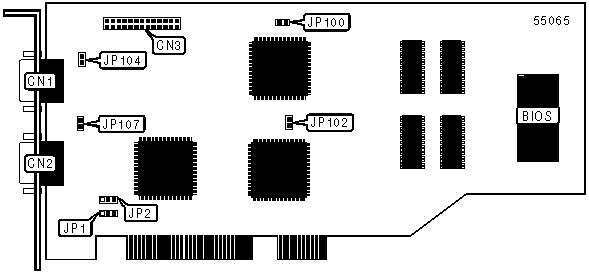

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video - channel 1 | CN1 | VESA feature connector | CN3 |
15-pin analog video - channel 2 | CN2 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
Channel 1 interrupt enabled | JP1 | Pins 2 & 3 closed | |
Channel 1 interrupt disabled | JP1 | Pins 1 & 2 closed | |
Channel 2 interrupt enabled | JP2 | Pins 2 & 3 closed | |
Channel 2 interrupt disabled | JP2 | Pins 1 & 2 closed | |
| » | Factory configured - do not alter | JP3 | Unidentified |
VGA enabled | JP100 | Open | |
VGA disabled | JP100 | Closed | |
| » | Factory configured - do not alter | JP101 | Unidentified |
| » | Factory configured - do not alter | JP102 | Unidentified |
| » | Factory configured - do not alter | JP103 | Unidentified |
Channel 1 CSYNC compatibility enabled | JP104 | Closed | |
Channel 1 CSYNC compatibility disabled | JP104 | Open | |
| » | Factory configured - do not alter | JP105 | Unidentified |
| » | Factory configured - do not alter | JP106 | Unidentified |
Channel 2 CSYNC compatibility enabled | JP107 | Closed | |
Channel 2 CSYNC compatibility disabled | JP107 | Open | |
| » | Factory configured - do not alter | JP200 | Unidentified |
| » | Factory configured - do not alter | JP201 | Unidentified |
Note: Location and orientation of factory configured jumpers JP3, JP101, JP103, JP105, JP106, JP200, & JP201 are unidentifed | |||
