STANDARD JERONIMO J1 video card Settings and Configuration
APPIAN TECHNOLOGY
STANDARD JERONIMO J1
Card Type | Video card |
Video Chip Set | Cirrus Logic |
Video Types Supported | VGA, XVGA |
Highest Resolution Supported | 1600 x 1200 |
Maximum Video Memory | Unidentified |
Data Bus | 64-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |

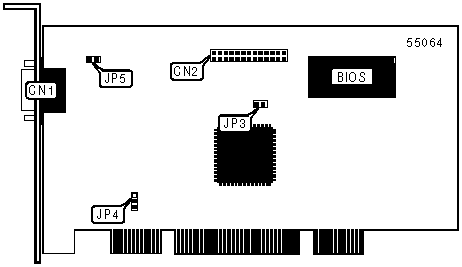

15-pin analog video port | CN1 | VESA feature connector | CN2 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
VGA enabled | JP3 | Open | |
VGA disabled | JP3 | Closed | |
| » | Interrupt disabled | JP4 | Pins 1 & 2 closed |
Interrupt enabled | JP4 | Pins 2 & 3 closed | |
CSYNC compatibility enabled | JP5 | Closed | |
CSYNC compatibility disabled | JP5 | Open | |
