VIDEOSURGE video card Settings and Configuration

Category	Video/Sound
Video Types Supported	XVGA
Video Processor	Chips & Technology
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	N/A
Maximum Onboard Memory	None

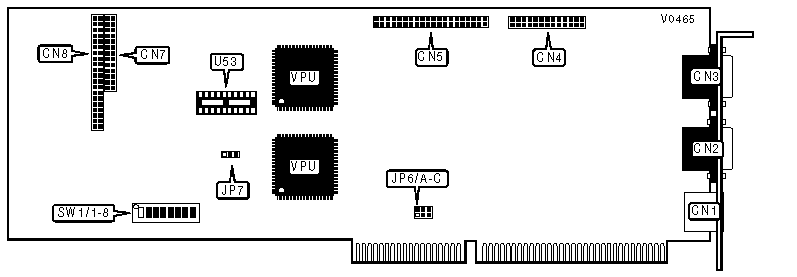

CONNECTIONS
Purpose	Location	Purpose	Location
4-pin DIN socket - S-VHS input	CN1	WaveLength Bus connector	CN5
Video input	CN2	WaveLength Bus connector	CN7
15-pin analog video port	CN3	WaveLength Bus connector	CN8
VESA feature connector	CN4	Chroma-Key chip socket	U53
Note: CN5, CN6, CN7, and CN8 are used to connect proprietary hardware.

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP7	Pins 1 & 2 closed
SW1/1	On
SW1/2	On
SW1/2	On
SW1/2	On
SW1/2	On
SW1/2	On
SW1/2	On
SW1/2	On
Note: the factory strongly recommends not altering default settings for JP7 and SW1.

INTERRUPT SELECTION
IRQ		JP6/A	JP6/B	JP6/C
»	IRQ10	Closed	Open	Open
	IRQ11	Open	Closed	Open
	IRQ12	Open	Open	Closed
